What is Iron Casting
Iron casting is a manufacturing process by pouring the molten material into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify.
The solidified part is also known as a casting, which is ejected or broken out of the mold to complete the process. Casting materials are usually metals or various cold setting materials that cure after mixing two or more components together; examples are epoxy, concrete, plaster and clay.
Iron casting is frequently used to make the complicated shapes
Iron Casting Material
1. Gray Cast Iron
This is the most common cast iron. They derived its name from the presence of small fractures which give the color gray in it. This is mostly used in many applications, especially for kitchen pans and other utensils.
3. Ductile Cast Iron
The other term for this is nodular cast iron. Its ductility comes from the iron alloy with high levels of carbon.
Common Used Material Standards in Iron Casting:
Cast Iron |
Standards |
|||||
GB |
AWS |
BS |
NF |
DIN |
ISO |
|
Grey Iron |
HT200 |
No.30 |
Grade 220 |
EN-GJL-200 |
GG20 |
200 |
HT250 |
No.35 |
Grade 260 |
EN-GJL-250 |
GG25 |
250 |
|
HT300 |
No.45 |
Grade 300 |
EN-GJL-300 |
GG30 |
300 |
|
HT350 |
No.50 |
Grade 350 |
EN-GJL-350 |
GG35 |
350 |
|
Ductile Iron |
QT450-10 |
65-45-12 |
GGG-40 |
EN-GJS-450-10 |
450/10 |
450-10 |
QT450-18 |
60-40-18 |
GGG-40 |
EN-GJS-450-18 |
400/18 |
450-18 |
|
QT500-7 |
80-55-06 |
GGG-50 |
EN-GJS-500-7 |
500/7 |
500-7 |
Iron Casting Process
Resin Sand Casting
Resin sand casting process is a kind of casting process by using the resin sand as the molding material. Resin sand is a kind of mixture of quartz sand and resin. After mixing and burning, the resin sand could become very hard and solid, so we called it as the hard mold. The iron casting made by resin sand will be usually called as resin sand casting.
Resin Sand Casting advantages:
1. Dimensional accuracy, clear external outline
2. Smooth surface, good quality
3. Energy saving, labor saving.
Green Sand Casting
Green sand casting process is a kind of casting production method, which uses green sand as the molding material, the process called "green sand" casting not because the sand is green but because the sand is moistened with water and clay rather than oil. The term Green Sand means the presence of moisture in molding sand and indicates that the mold is not baked or dried. Green sand is a kind of wet quartz sand.
Except of green sand, this process need to use the cupola or medium frequency furnace. As for the molding equipment, some iron foundries use the molding machines, automatic molding lines, or just use manual molding method.
Green Sand Casting Advantages:
1. Simple production process
2. Lower production costs
3. Higher production rate
Ningbo Supreme Machinery is Manufacturer and supplier of high quality iron casting part in China. Products mainly include Cast iron flywheel, triangle pulley, diesel generator, diesel engine, pump set, flat pulley, cast iron flange. Products can be customized according to the drawings or samples provided by the customer.
Read MoreSend InquiryNingbo Supreme Machinery is a professional gray iron and ductile Iron casting manufacturer and supplier in China. We mainly produce ductile iron manhole cover, Cast Iron Drainage Gully Grate, gutter channel plate, tree guard grating pipes and pipe fittings. If you are interested in our products,please do not hesitate to contact me .
Read MoreSend InquiryNingbo Supreme Machinery Co., Ltd is a professional cast iron caster wheel manufacturer and supplier in China. We can provide casters and wheels for nearly every mobility purpose, as we have many different types of high quality caster. Our products are 100% for exporting, mainly to Europe, USA and Japan. Please feel free to contact us for further information.
Read MoreSend InquiryNingbo Supreme Machinery is Manufacturer and supplier of high quality Cast Iron Brake Drum. We specialize in production of cast iron Braking drum (Brake hub) for all kinds of automobile & trailer& tractors. We have completed production line and have advanced equipment for Casting, Machining and quality testing.
Read MoreSend InquiryWe are professional manufacturer and supplier for cast iron brake disc in China, our products has already widely used in trucks ,cars. etc. Our factories have professional production equipment & assembly line and advanced assembly testing facility for Auto Brake System. Our main markets are Europe , Americas and the Middle East.

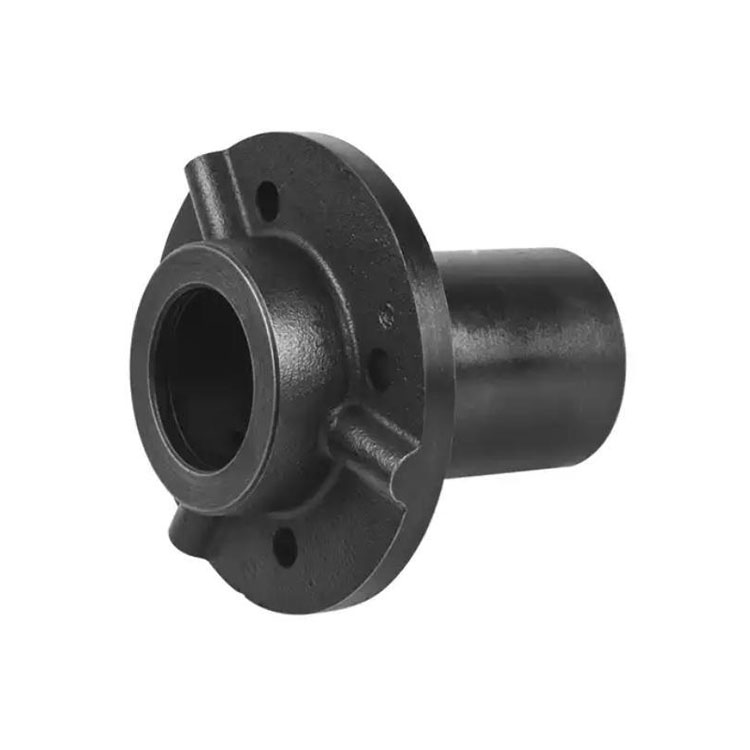

Read MoreSend InquiryNingbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China. We produce cast iron agriculture wheel hub for tractors, farm wagons, trailers, light trailers ,semi-trailer and other implements
Read MoreSend Inquiry
