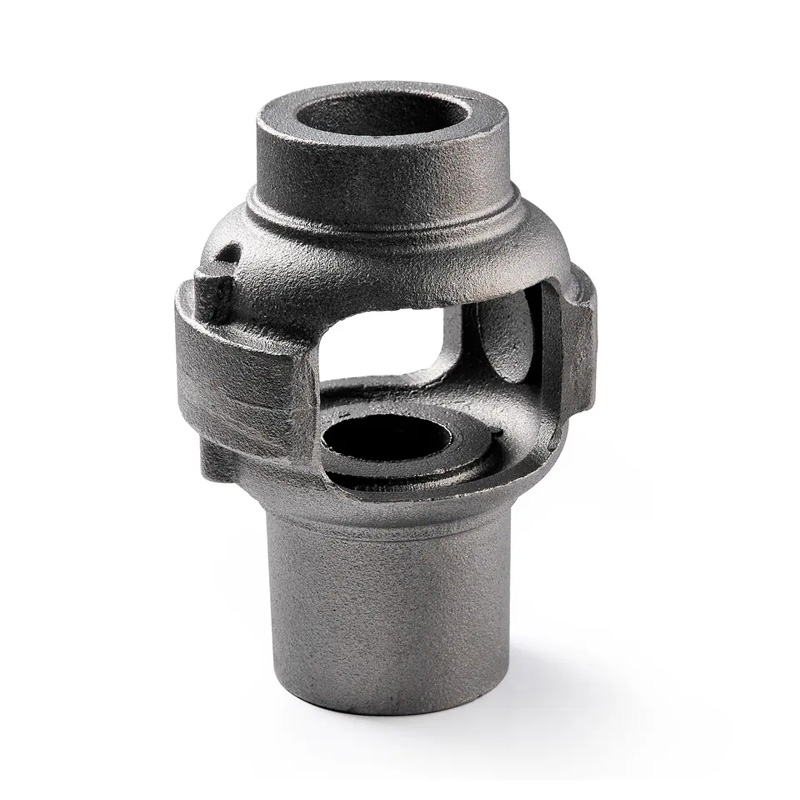

Ductile Iron Casting: How to Choose the Right Grade for Different Applications

Choosing a ductile iron grade is not simply a matter of selecting the highest tensile strength. In our experience, the right grade depends on the part's load, impact requirements, wall thickness, working environment, machining needs, and final application. At Supreme Machinery, we produce ductile iron castings in different grades for agricultural machinery, construction machinery, hydraulic systems, automotive parts, mining equipment, valves, and other industrial applications. This guide explains how we match ductile iron grades with actual part requirements.

Contents

• Why Does Ductile Iron Grade Matter?
• How We Choose a Ductile Iron Casting Grade
• Common Ductile Iron Grades and Applications
• Choosing Grades for Different Applications
• Strength vs. Ductility: What Should Buyers Prioritize?
• Why Custom Ductile Iron Casting Requires More Than a Material Grade
• FAQ About Ductile Iron Casting Grades

Why Does Ductile Iron Grade Matter?

Ductile iron, also called nodular graphite iron or spheroidal graphite iron, is produced by treating molten iron so that the graphite forms into a more spherical shape. Compared with conventional gray cast iron, this structure gives ductile iron better strength, toughness, and ductility.

However, not every ductile iron casting needs the same mechanical properties. A valve body, wheel hub, hydraulic component, and heavy-duty machinery bracket can have completely different requirements. Choosing a grade simply because it has a higher strength value can increase material and production requirements without providing a useful benefit in the finished part.

When we evaluate a new casting project, we normally look at the working load and failure risk first. For a component that needs good elongation and resistance to impact, we may consider a more ductile grade. For a heavily loaded structural component, a higher-strength grade may be more appropriate.

How We Choose a Ductile Iron Casting Grade

At Supreme Machinery, we manufacture OEM castings according to customer drawings, samples, material requirements, and application conditions. Before recommending a ductile iron grade, we normally consider the following points.

1. Working Load

First, we need to know whether the casting carries a static load, repeated mechanical load, impact load, or a combination of these conditions. Parts used in construction and agricultural machinery often experience changing loads rather than a single constant force.

For these applications, tensile strength is important, but it should not be considered alone. Yield strength and elongation also affect how the component behaves under actual working conditions.

2. Toughness and Ductility

Some castings need to absorb deformation or occasional impact without sudden fracture. In these cases, we pay more attention to elongation and toughness when selecting the grade. This is one reason why a lower-strength but more ductile grade can sometimes be a better engineering choice than a high-strength grade.

3. Part Geometry and Wall Thickness

Casting geometry also matters. A large housing with different wall thicknesses does not solidify in exactly the same way as a small, relatively uniform casting. The casting design, section thickness, feeding conditions, and molding process all need to be considered together with the material grade.

We therefore prefer to review the customer's 2D or 3D drawing before confirming the final casting specification. This allows us to consider the part rather than selecting a material grade from a table alone.

4. Machining Requirements

Many ductile iron castings are supplied as castings that will later be machined. Bearing housings, valve bodies, hydraulic components, and machinery brackets may require controlled machining allowances on important surfaces.

When quoting an OEM casting, we check the drawing for critical dimensions, tolerances, machining areas, and other technical requirements. This is important because the casting process and the subsequent machining process need to work together.

Common Ductile Iron Grades and Applications

We commonly work with ductile iron grades such as QT400-18, QT450-10, QT500-7, QT600-3, QT700-2, QT800-2, and QT900-2 under the Chinese GB system. Equivalent grades may be specified under ISO, EN, ASTM, JIS, or other standards depending on the customer's market.

Typical Grade	Typical Characteristics	Examples of Suitable Applications
QT400-18	Good ductility with moderate strength	Components where elongation and toughness are important
QT450-10	Balanced strength and ductility	General machinery components, housings and brackets
QT500-7	Higher strength with useful ductility	Machinery parts, wheel hubs, brackets and structural components
QT600-3	Higher strength with lower elongation	Heavily loaded machinery and industrial components
QT700-2	High strength and relatively low elongation	High-load mechanical components requiring higher strength
QT800-2	High tensile strength with limited elongation	Selected heavy-duty mechanical components
QT900-2	Very high strength within the listed ductile iron grades	Applications where high strength is a primary requirement

The table is intended as a practical starting point rather than a universal material-selection rule. The final grade should be confirmed against the customer's drawing, applicable material standard, casting geometry, and actual working conditions.

Choosing Grades for Different Applications

Agricultural Machinery Castings

Agricultural machinery components can experience vibration, repeated loading, impact, and changing outdoor working conditions. For parts such as brackets, housings, and other structural castings, we usually look for a practical balance between strength, ductility, machinability, and casting cost.

Grades such as QT450-10 and QT500-7 can be considered for applications where a balance of mechanical properties is required. The actual selection still depends on the part design and customer's technical specification.

Construction Machinery Castings

Construction equipment generally places high mechanical loads on components. Parts such as brackets, housings, hubs, and other load-bearing castings may require higher-strength ductile iron.

For this type of project, we pay particular attention to load conditions, section thickness, connection areas, machining surfaces, and potential stress concentration around holes and corners. A higher material grade does not automatically solve a poor casting design.

Hydraulic Components

Valve bodies and hydraulic cylinder components require dimensional control as well as suitable mechanical properties. Machined sealing surfaces and connection areas are especially important.

For hydraulic castings, we normally review the complete drawing before confirming the casting process. The material grade, mold design, machining allowance, and inspection requirements should be considered as one production plan.

Automotive and Wheel Hub Components

Automotive components are often exposed to repeated mechanical loads and vibration. Wheel hubs, brackets, chassis-related components, and other parts need a suitable combination of strength and fatigue resistance.

We do not recommend choosing a grade based only on the tensile-strength number. The application, geometry, loading condition, and customer's required standard should determine the final material.

Mining Machinery Components

Mining equipment generally works under demanding mechanical conditions. Components may encounter heavy loads, vibration, abrasion, and impact. For these castings, the selection process needs to consider both mechanical requirements and the wear conditions of the actual component.

Depending on the part, a higher-strength ductile iron grade may be considered. For wear-critical areas, however, material grade alone may not provide the required service life, so the complete part design and working environment need to be reviewed.

Strength vs. Ductility: What Should Buyers Prioritize?

This is one of the most common questions we receive when discussing ductile iron casting. Our answer is usually: start with the actual failure mode of the component.

If the part mainly needs to carry a high mechanical load, strength may receive greater attention. If the component may experience impact or deformation, elongation and toughness can become more important.

For example, moving directly from QT500-7 to QT700-2 only because QT700-2 has a higher strength rating may not be the right decision. If the application benefits from greater ductility, the higher-strength grade may not provide the overall balance the component needs.

This is why we prefer to start an OEM ductile iron casting project from the application and drawing, then work backward to the material grade and production process.

Why Custom Ductile Iron Casting Requires More Than a Material Grade

At Ningbo Supreme Machinery Co., Ltd, we have been producing gray iron casting, ductile iron casting, and precision investment casting for more than 25 years. Our production processes include resin sand casting, green sand casting, shell molding, automatic molding, lost foam casting, and investment casting.

Our ductile iron castings are mainly supplied as OEM parts. Customers can provide 2D or 3D drawings, samples, material specifications, dimensions, tolerances, surface-treatment requirements, quantities, and application information for quotation.

For a new casting, our technical team can review the design, estimate production costs, determine a suitable casting process, and arrange inspection according to the customer's requirements. We also keep customer drawings and designs confidential.

We carry out inspection throughout production and conduct final inspection before shipment. Third-party inspection is also acceptable when required by the customer.

If you are sourcing custom ductile iron castings, you can learn more about our Ductile Iron Casting manufacturing capabilities or send us your drawing and requirements for a quotation.

FAQ About Ductile Iron Casting Grades

What is the most commonly used ductile iron grade?

There is no single grade that is suitable for every application. QT400-18, QT450-10, QT500-7, and other grades are selected according to the required strength, elongation, part design, and application. For many general industrial components, a balanced grade can be more practical than simply choosing the highest-strength option.

What is the difference between QT400-18 and QT500-7?

The two grades provide different balances of strength and elongation. QT400-18 is positioned toward higher ductility, while QT500-7 provides higher strength with lower elongation. The appropriate choice depends on whether the component places greater emphasis on deformation capacity, toughness, or load-bearing strength.

Can ductile iron replace steel casting?

In some applications, ductile iron can provide a lower-cost alternative to steel casting while offering good strength and useful ductility. However, it is not a universal replacement. Temperature, load, impact, section design, corrosion conditions, and other technical factors need to be considered before changing the specified material.

What information is needed to quote a custom ductile iron casting?

We normally ask for a 2D or 3D drawing, material grade or standard, dimensions and tolerances, surface-treatment requirements, quantity, application information, and samples if available. With complete technical information, we can evaluate the casting process and prepare a quotation.

Does Supreme Machinery accept small trial orders?

Yes. Our MOQ depends on the customer's requirements and the specific casting project. We also welcome trial orders before mass production, which can be useful when a customer wants to verify the casting design, quality, and production process first.

How long does a ductile iron casting project take?

The production cycle varies according to part size, casting process, technical requirements, tooling, and order quantity. After reviewing the drawing and requirements, we can confirm the expected production schedule for the specific project.

Conclusion

Choosing the right ductile iron grade starts with the application rather than the material table. Strength, elongation, toughness, part geometry, machining requirements, production process, and cost all need to be considered together.

With more than 25 years of casting experience, Supreme Machinery works with customers on OEM ductile iron castings for agricultural machinery, construction machinery, hydraulic systems, automotive parts, mining equipment, valves, and other industrial applications. If you already have a drawing or sample, we can review the requirements and recommend a suitable casting process and material specification before production.
