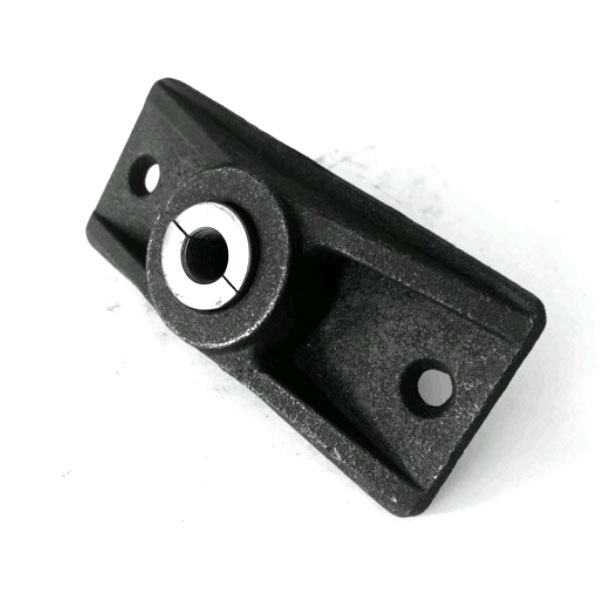

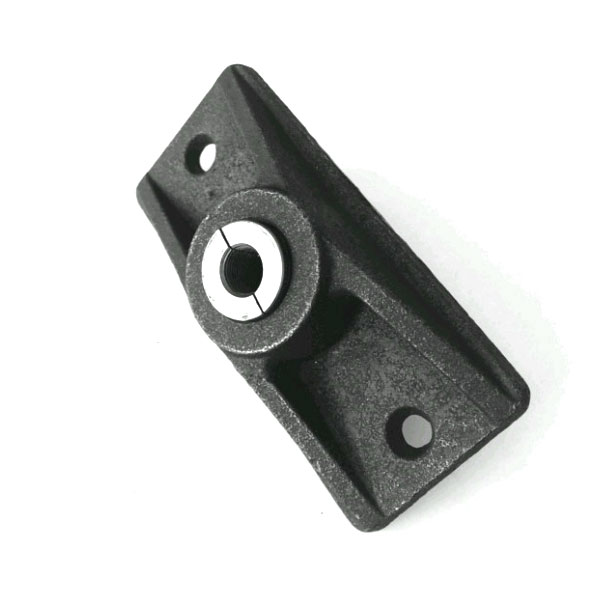

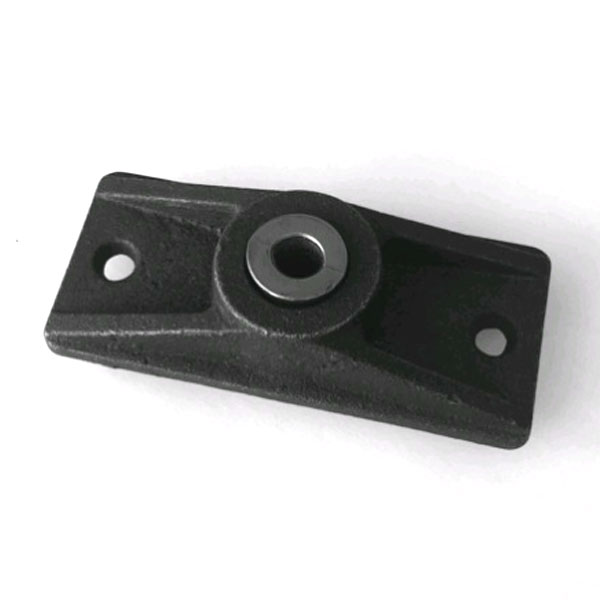

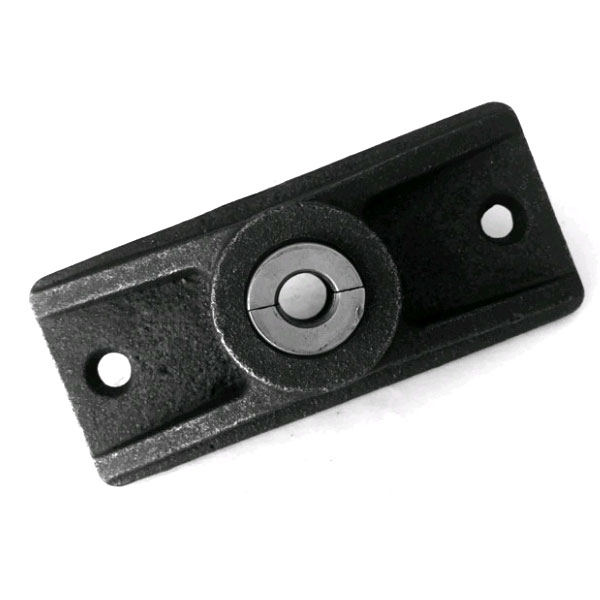

Post Tensioning Unbonded Monostrand Anchor

Post Tensioning Unbonded Monostrand Anchor is a specific type of anchorage system used in post-tensioning applications. It is commonly used in the construction of concrete structures to apply pre-compressive forces to enhance their load-bearing capacity.

Send Inquiry

Product Description

In this system, a monostrand tendon, usually made of high-strength steel, is utilized to provide the required tension in the concrete element. The tendon is typically composed of a single strand wrapped in a protective sheath, preventing it from coming into direct contact with the concrete. This design allows for easier installation and maintenance of the tendon.

Application

The post-tensioning unbonded monostrand anchor system is a widely used technique in construction to enhance the load-bearing capacity and durability of concrete structures. Its unique design provides flexibility, ease of maintenance, and corrosion protection for the tendon, making it a preferred choice for various applications, such as bridges, buildings, and other structures.

1. Name: prestressed unbonded anchorage

2. Capacity: HRC 15-35

3. Holes for anchorage: One hole

4. Wedges: 2pcs or 3pcs

5. Shape: round or flat

6. Specification: Used for the PC steel strand 12.7mm, 15.24mm and 15.7mm

7. Package: In box and outside wooden case

8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe.

Production Process

We have updated our production line for making Post Tensioning Unbonded Monostrand Anchor

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Post Tensioning Unbonded Monostrand Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
