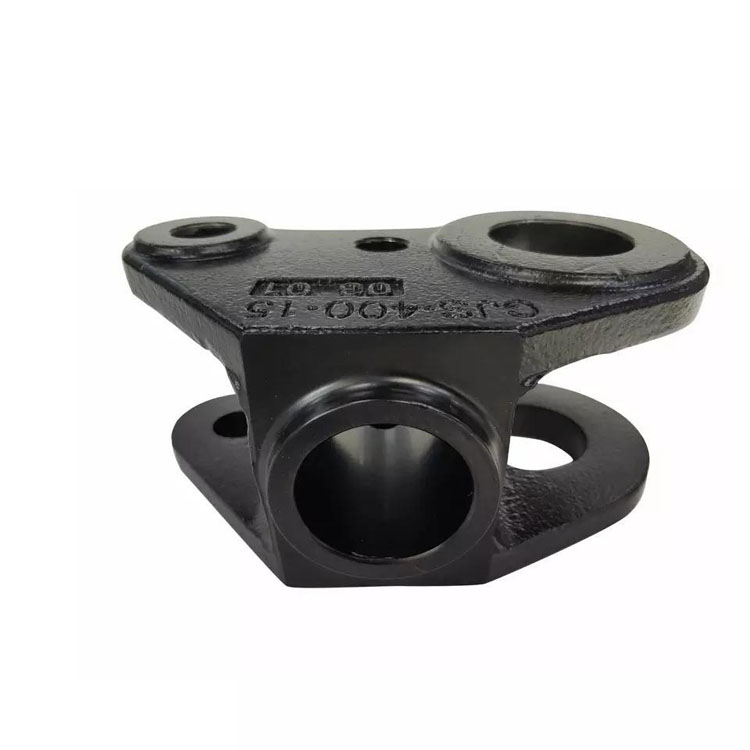

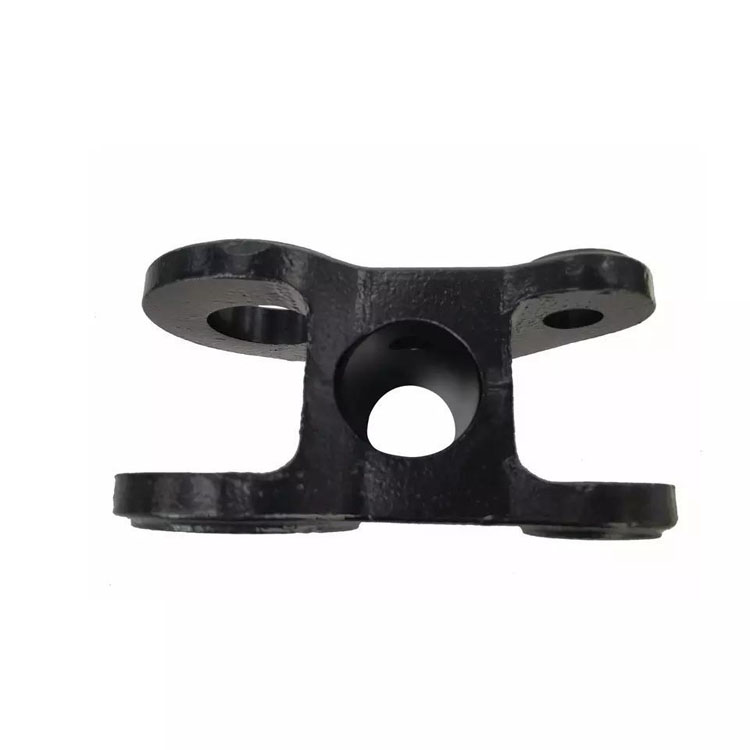

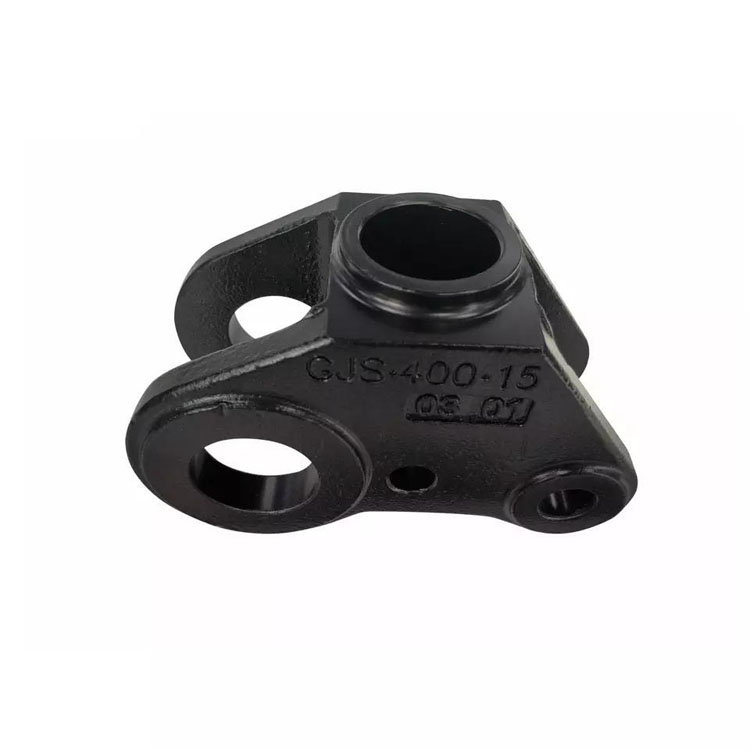

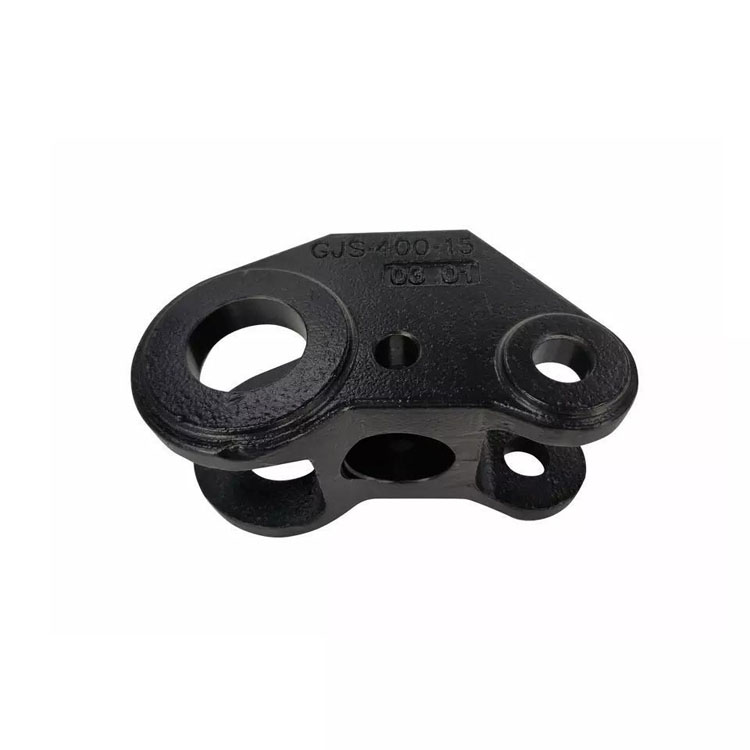

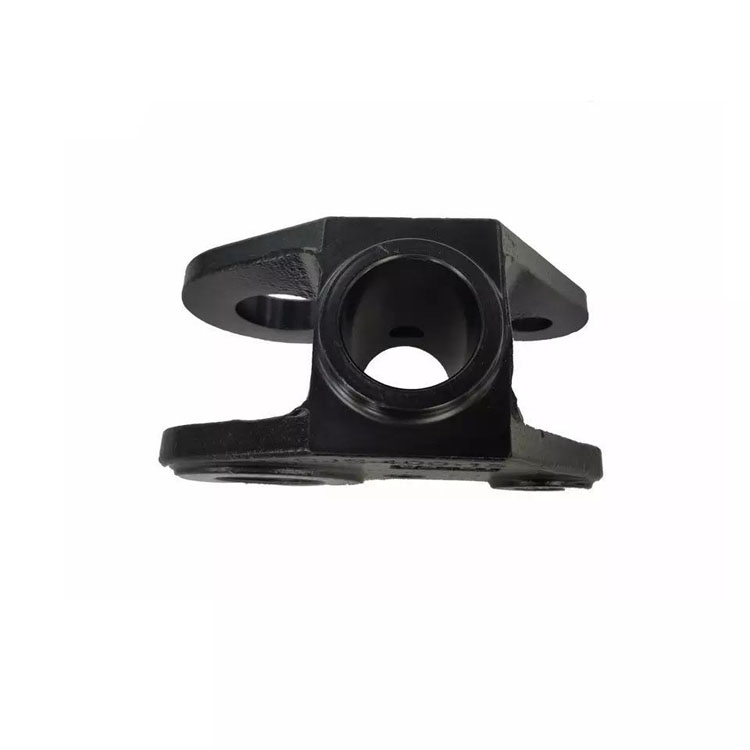

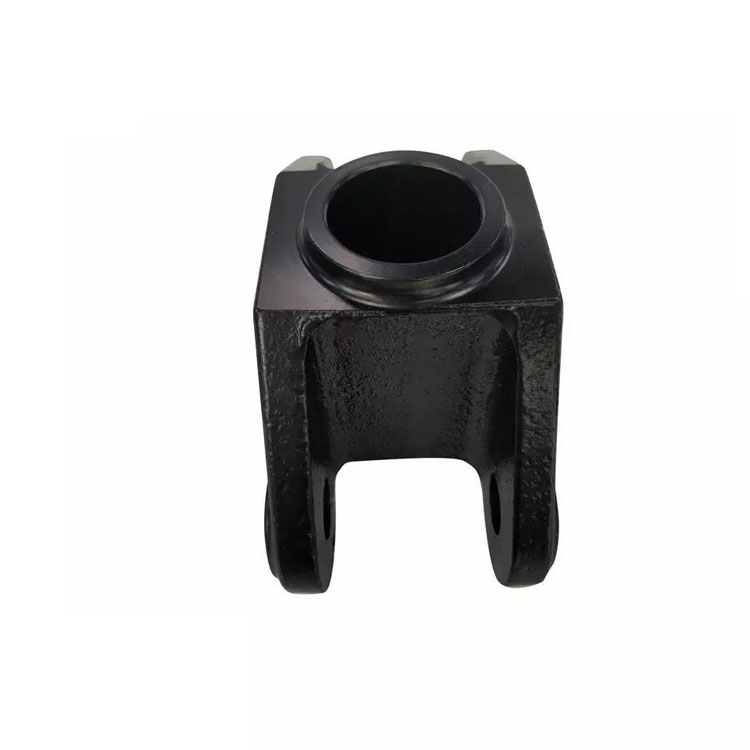

Cast Iron Mounting Bracket

Ningbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China. We produce Grey Iron, Ductile Iron and Steel Castings for Construction Machinery such as Truck, Crane, Forklift etc.The main products include cast iron mounting bracket, motor casing, reducer shell, belt pulley, cast iron cradle, iron support, brake drum, axle support, connecting block, truck swing bracket, etc.

Send Inquiry

Product Description

Ningbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China. The cast iron mounting bracket is made of ductile cast iron GJS-400-15. Supreme machinery uses resin sand casting process. Normally, wear resistant castings and high strength forgings are very common in construction machinery. They help machines to build facilities, transport materials, landfill, and maintain roads. Construction Machinery Parts are mainly including as per following products:

Track Links	Clamping
Lifting Eyes	Quick Joint
Bearing Covers	Sprockets
Tooth Blocks	Side Plates
Track shoes	Beam connectors
Mounting Brackets	Trencher Tooth
Bucket Teeth	Coupling

Product Details

Item Name	Cast Iron Mounting Bracket
Casting Type	Ductile Iron Casting
Production Process	Sand Casting / Clay Sand Casting / Green Sand Casting/ Resin Sand Casting
Casting Manufacturer	Supreme Machinery Co.,Ltd
Quality Control	Spectrum Analyzer, Three-Coordinate Detector, Metallographic Analyzer, Tensile Testing Machinery
Standards	ASTM A48, ISO 185, DIN 1691, EN 1561, JIS G5501, UNI 5007, NF A32-101, BS 1452, IS 210,
Material Grade	GJS-400-15
Application	Construction Machinery
Machining Tolerance	0.01-0.05
Inspection Method	visual, dimensional, X-ray inspection

Material Features

EN-GJS-400-15 ductile iron is a very common material in European standard DIN EN 1563.

It is equal to GGG40 in DIN 1693, QT400-15 in China, A536 60-40-18 in USA ASTM

Chemical Component

DIN EN 1563	ISO	C %	Si %	Mn %	P %	S %
EN-GJS-400-15	400-15	2.5-3.8	0.5-2.5	0.2-0.5	≤0.08	≤0.02

Properties of EN-GJS-400-15

Tensile strength ≥ 400 Mpa.

Yield strength ≥ 250 Mpa.

Elongation ≥ 15%.

No impact requirement.

Hardness ofEN-GJS-400-15

The hardness of this ductile cast iron grade is between 130-180 Brinell hardness.

Density ofEN-GJS-400-15

The density of this ductile iron grade is about 7.3 g/cubic centimeter, or 7.3 kg/liter.

Production Process

We have updated our production line for making cast iron mounting bracket. Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements.After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging ofcast iron mounting bracketcan be customized based on customer requirements to meet the different needs, such as plastic bag, cartonbox, wooden case, crate, etc.
