Grey Cast Iron Clutch Pressure Plate

Ningbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China.
Grey Cast Iron Clutch Pressure Plate is a stress bearing component in the clutch assembly.

Send Inquiry

Product Description

Cast iron alloys like grey iron GG30, GG25 (Germany standard DIN 1691) are commonly used for clutch pressure plate castings. These materials have high compressive strength, low tensile strength and no ductility.

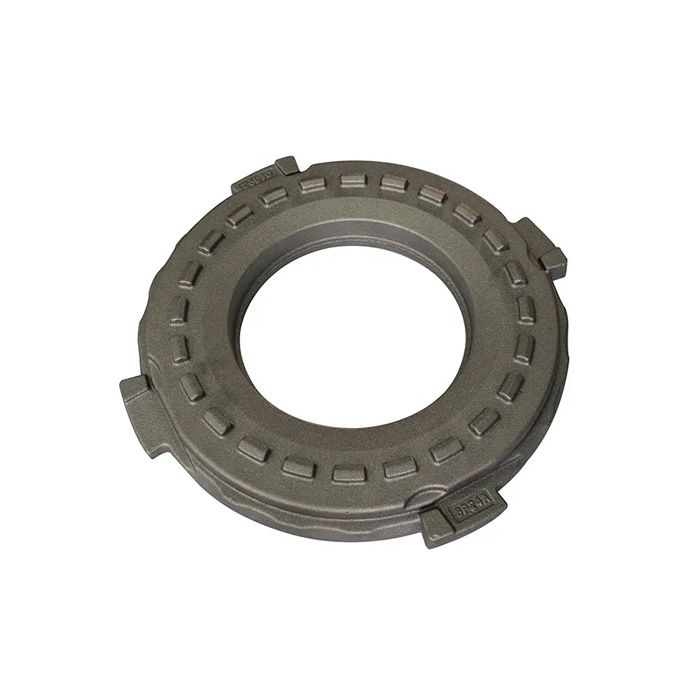

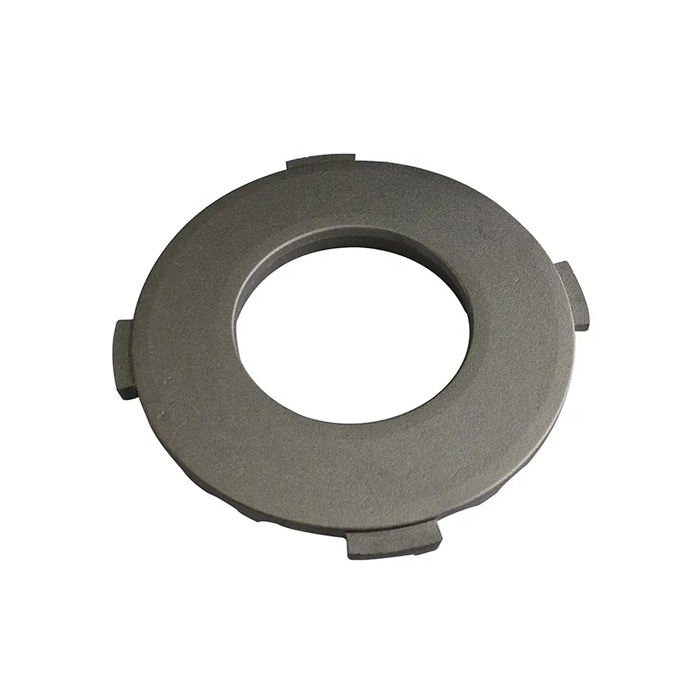

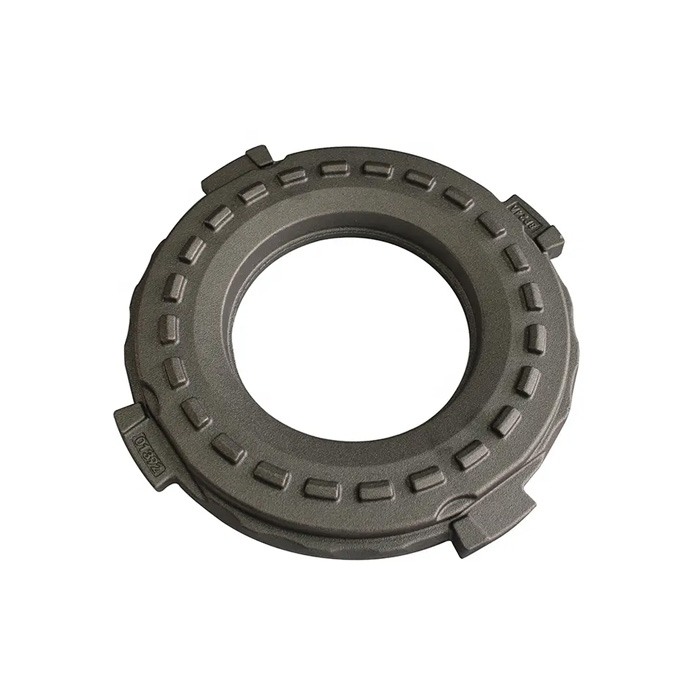

The following photo is a cast iron clutch pressure plate part that made of grey cast iron HT250 (China standard GB 9439) material, with BH160-220 Brinell hardness. The casting module for it could be sand casting, clay sand casting or green sand casting.


Product Name

Grey Cast Iron Clutch Pressure Plate

Production Process

Sand Casting / Clay Sand Casting / Green Sand Casting/ Resin Sand Casting

Casting Manufacturer

Supreme Machinery Co.,Ltd

Quality Control

Spectrum Analyzer, Three-Coordinate Detector, Metallographic Analyzer, Tensile Testing Machinery

Standards

ASTM A48, ISO 185, DIN 1691, EN 1561, JIS G5501, UNI 5007, NF A32-101, BS 1452, IS 210,

Material Grade

HT250

Application

Auto and Track

Machining Tolerance

0.01-0.05

Inspection Method

visual, dimensional, X-ray inspection


Production Process

We have updated our production line for making Grey Cast Iron Clutch Pressure Plate

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Grey Cast Iron Clutch Pressure Plate can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
