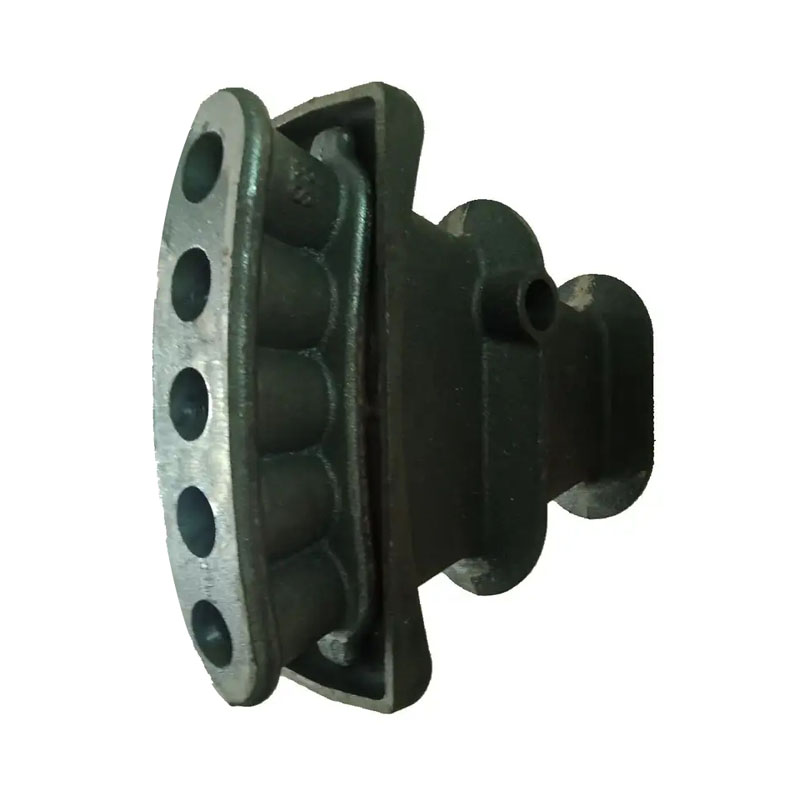

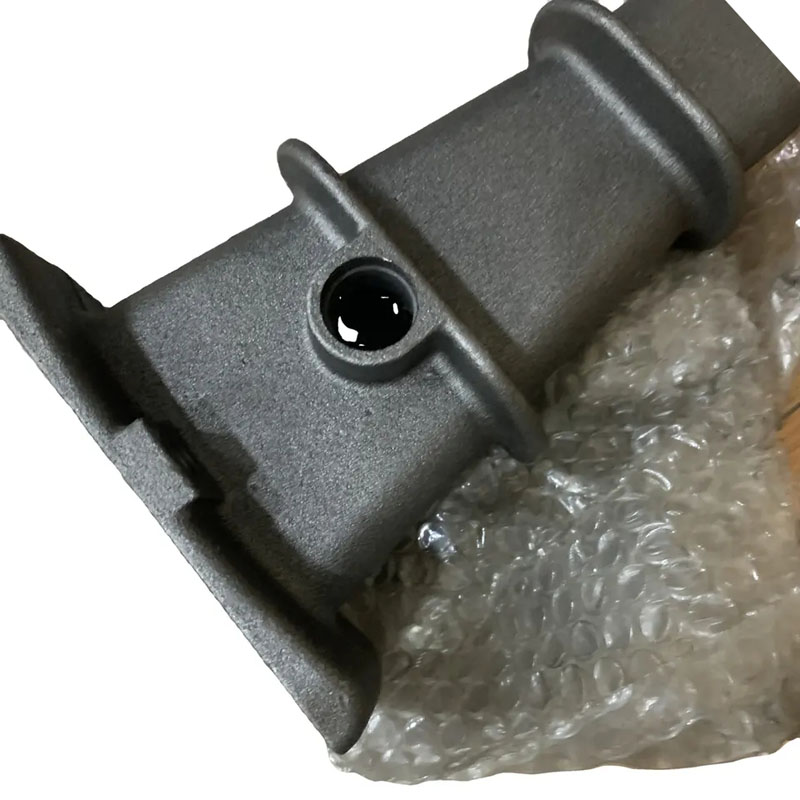

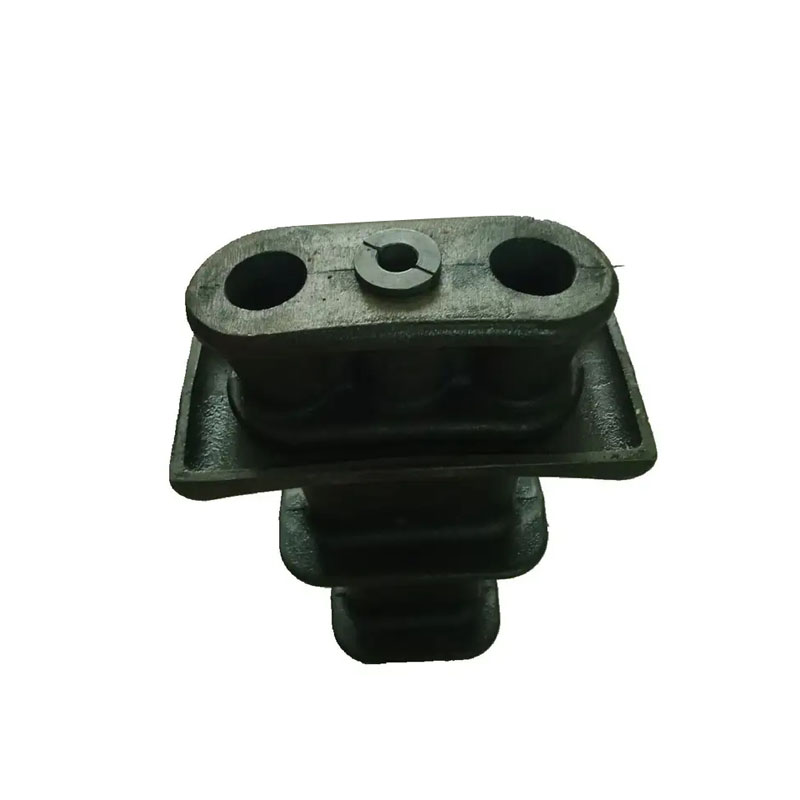

Post Tension Arc Flat Anchor

Post tension arc flat anchor is a type of anchor that is used in post-tensioning systems. It is designed to provide a secure and reliable connection between the post-tensioning cable and the concrete structure. The anchor is made up of several components, including a flat plate, a wedge, and a bearing plate.

Send Inquiry

Product Description


Post tension arc flat anchors are commonly used in a variety of applications, including bridges, parking structures, and high-rise buildings. They are preferred over other types of anchors because they provide a high level of strength and durability, and they can be easily installed and maintained.

Product Details

Components for one full set

S3 S5 Casting anchor, anchor block, anchor head, anchor wedges for 12.7mm steel strand, 15.24mm steel strand

Flat anchorage

3 holes, 5 holes

Material of anchor head

casting iron

Material of wedge


Surface treatment

anti-rust treatment


in cartons or wooden boxes

Application field

post tension projects such as bridges, malls and roads

Production Process

We have updated our production line for making post tension arc flat anchor
Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control
Checking the details before the production line operated
Have full inspection and routing inspection during mass production---In process quality control
Checking the goods after they are finished---- Final quality control
Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of post tension arc flat anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box,  wooden case, crate, etc.
