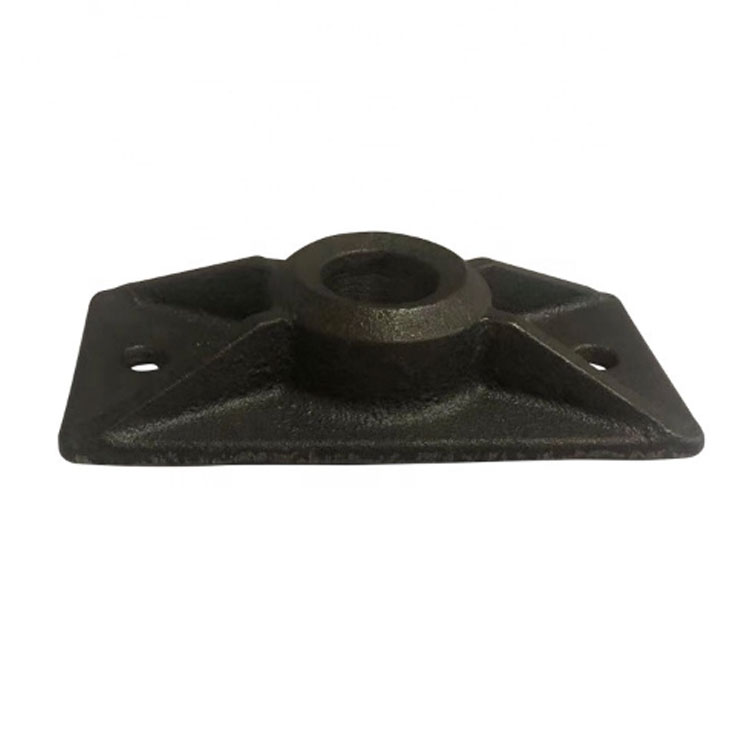

Unbonded Post-Tensioning Monostrand Anchor

Unbonded Post-Tensioning Monostrand Anchor can be used to unbonded pc strand 12.7mm and 15.24mm. Outlet-Tubing with connection to duct used to allow the escape of air, grout, and bleed water from the duct. Pocket former-A device that forms a temporary recess in the concrete to allow access for stressing.

Send Inquiry

Product Description

Unbonded Post-Tensioning Monostrand Anchor is a widely used technique in construction that offers several advantages like flexibility, ease of maintenance, and improved corrosion protection. It is commonly used in the construction of bridges, buildings, and other structures that require high durability and load-bearing capacity.

Product Details

Material of anchor	ASTM A536 80-55-06 Ductile Iron
Material of Wedge	20CrMnTi ; 20CrMn5
Type of wedge	2pcs or 3pcs
Holes	One Hole/Single Hole/Mono hole
Hardness of work Wedge(HRC)	50~65
Surface treatment of anchor plate	Encapsulated
Specification	12.7, 15.24，15.7
Capacity	1860MPA
Sample	Available

Production Process

We have updated our production line for making Unbonded Post-Tensioning Monostrand Anchor

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Unbonded Post-Tensioning Monostrand Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
